Product Details

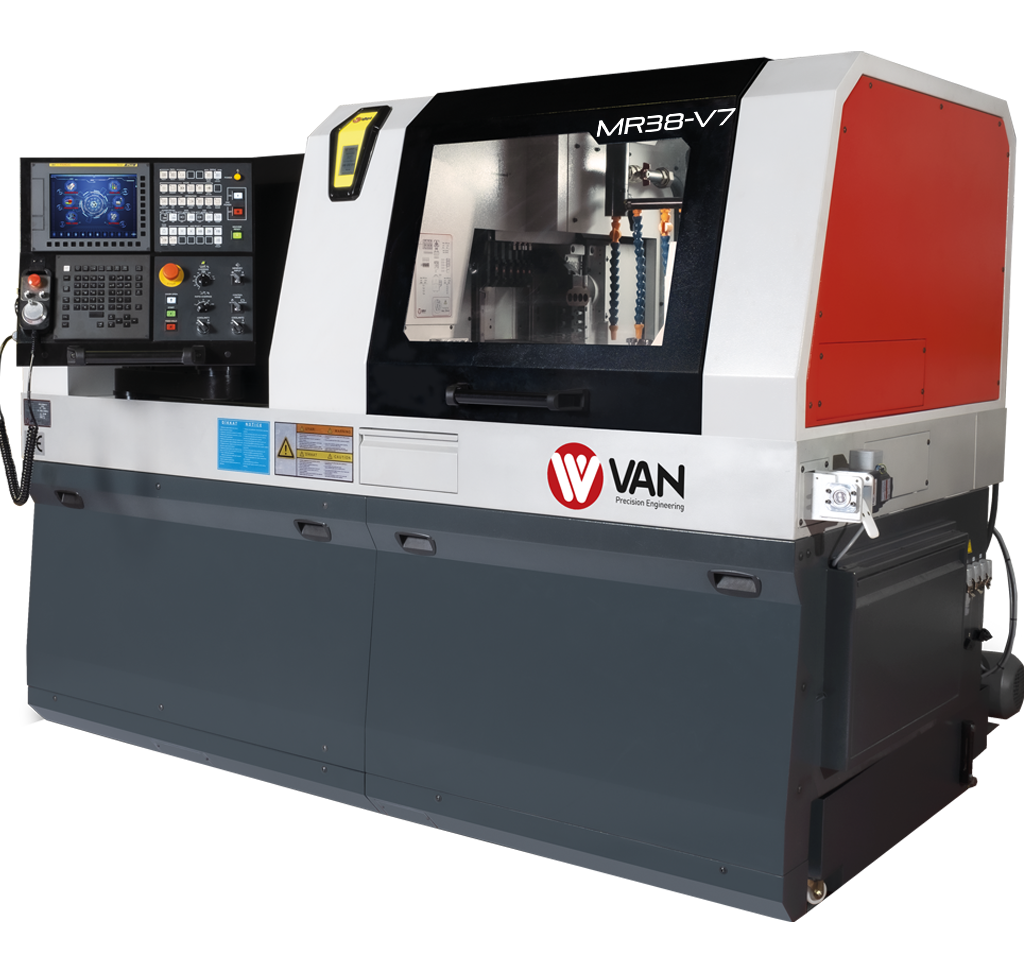

MR38-V7
Van Machine | We Offer You Precision Manufacturing Solutions Not Just A Machine
HFO Function
One of the most important software technologies that VAN offers to you is the chip breaking option, which will allow you to remove the chips in the form of long threads in much smaller pieces thanks to this software.
OIL HEAT AND PARTS COUNT DISPLAY
You can see the heat rating of the working cutting oil, the part processing time and the amount of parts produced without interfering with the machine. In addition, thanks to the changing color feature( Red, Yellow, Green), it shows the working status of the machine.
Improved Interface
There are many features such as 2 MB program memory, 1000 program recording, automatic cutting control, program control that will run on 2 channels.
HIGH PRESSURE PUMP
40 Bar and 4 output programmable thanks to the high pressure pump, team performance and track your surfaces will be much better.
OIL COOLER
Oil cooling unit inside the machine you will always adjust the cutting oil it helps keep it warm.
WIRED HANDWHEEL
In this way, tool reset operations much more precise and in a short time you can do it.
PART CONVEYOR
Always finish with part conveyor by taking the part you are processing over the tape you can measure your last pieces.
USB MEMORY
External data with Usb and CF card can load and data from machine you may receive. Also Usb and Memory Program via Card you can run.
PRODUCT RECEIVER BOX
The workpiece gripped in the back spindle is unloaded into the product chute for collection.
IN-MACHINE LIGHTING
Adjustment through Led lighting more comfortable for operator during a workspace is provided.
HIGH RIGIDITY MACHINE STRUCTURE
Maximum Rigidity, Long term Precision and best in class Complete with components PERFECT DESIGN
- FANUC (Japan): 0i-MODEL F Plus, 31i / 32i-MODEL B series are used.
- THK (Japan): Linear skids and LM guide the SHS and SRS series are used.
- NSK (Japan): All ball screws used are precision-engineered and selected as Class C3.
- SMC (Japan): Class of Pneumatic systems used It was chosen as the best.
- SKF (Japan): The skid lubrication systems are optimal for every skid. It is special micro-organisms that provide lubrication precision equipment.
COMPARISON OF MOMENT LOADING OF SHEAR FORCES
Radial and axiel charges are shown. Here from horizontal and vertical skid systems 45° slope when compared with forces at least the cutting forces of the bank you'll see he's impressed.
- Slant type - My: 1
- Vertical type - My: 1,3
- Horizontal type - My: 1,9
FZ OF THE PUSH FORCE MOMENT LOADING COMPARISON
As for the need force the moment load of the slant type is the smallest when compared to that of the vertical type and horizontal type.
- Slant type - Mz: 1
- Vertical type - Mz: 1,3
- Horizontal type - Mz: 1,5
Technicial Specifications
You can check the technical specification details of Van Makine cnc sliding automats for the specified model below.
SPINDLE SPECIFICATIONS
Fixed Tool Capacity
Rotary Tool Capacity
SPINDLE TECHNICAL SPECIFICATIONS
You can check the details of the spindle technical specifications for Van Makine cnc sliding automats for the specified model below.
