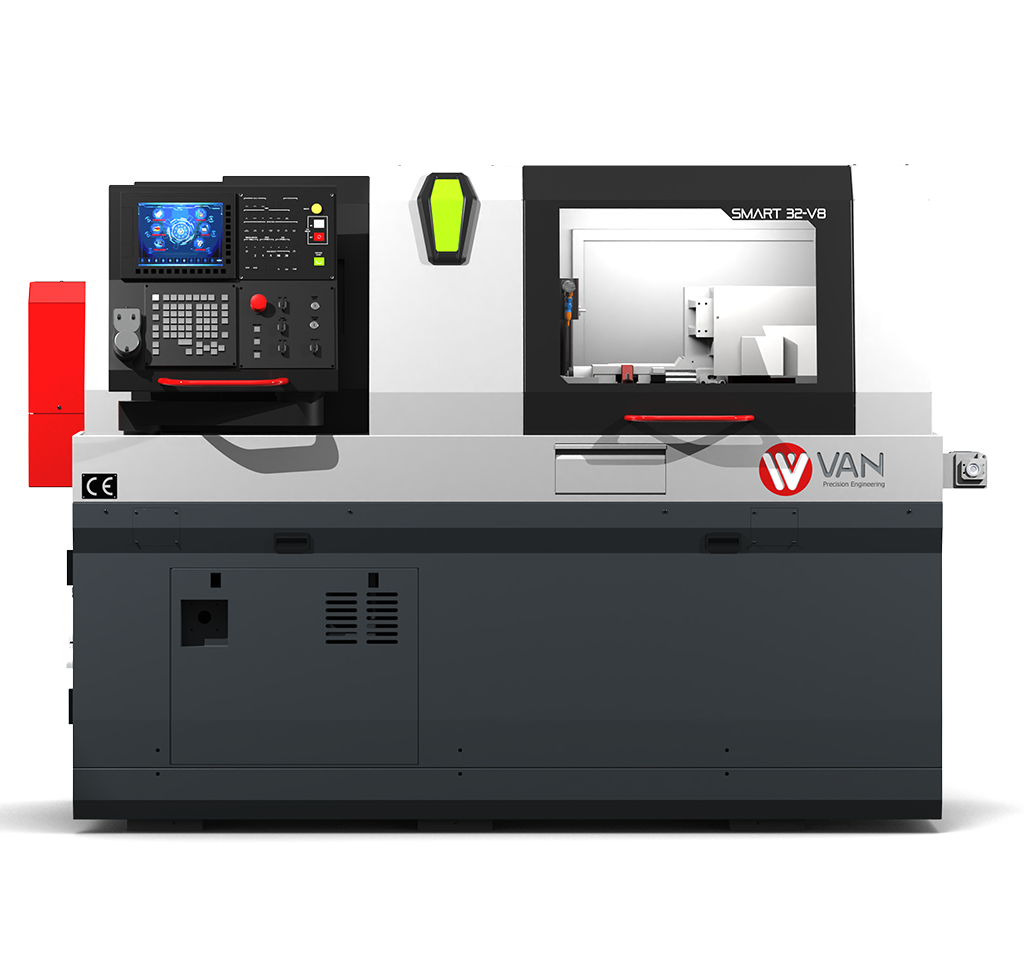

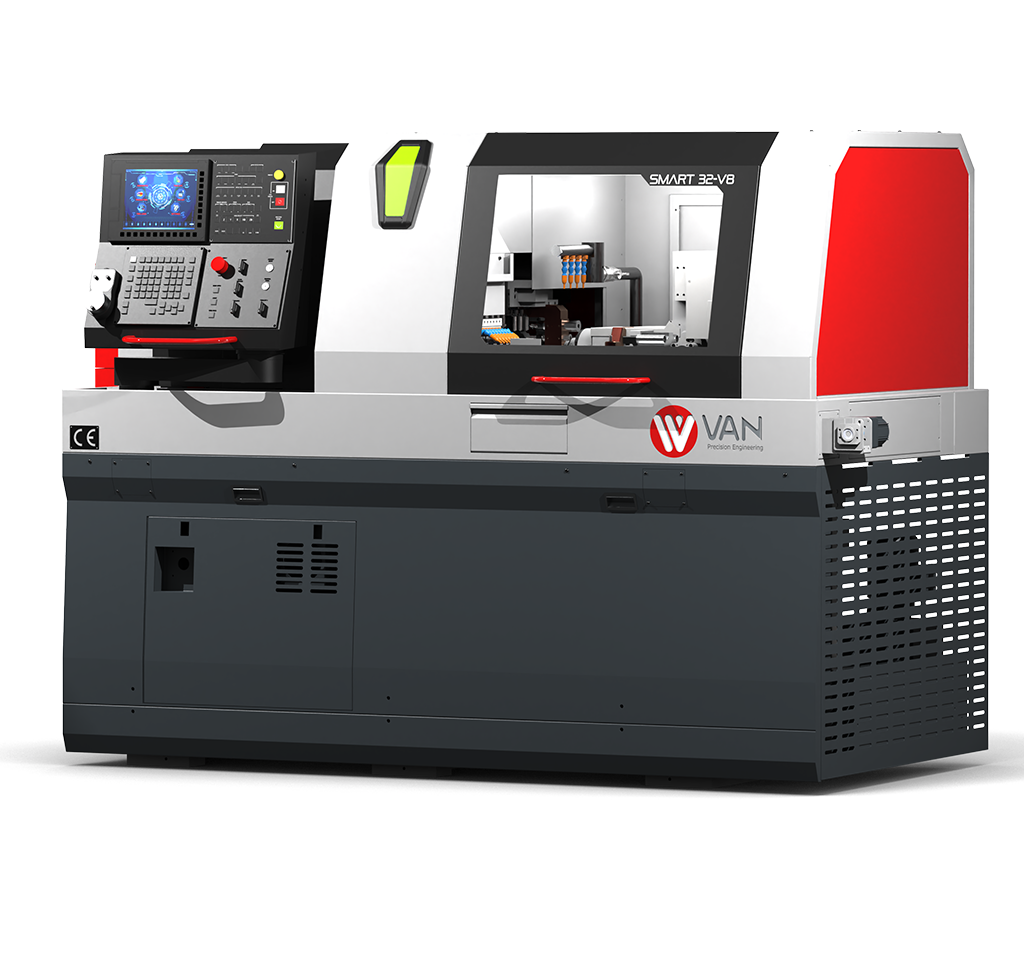

SMART32 V7/V8
WE OFFER YOU PRECİSİON MANUFACTURİNG SOLUTİONS NOT JUST A MACHİNE.
Technicial Specifications
You can check the technical specification details of VAN Machinery Swiss Type Automatic Lathe for the specified model below.
1. Spindle Specifications
Max Machining Diameter32mm
Maximum Machining Length (Guide Bush)205mm
Max Machining Length (Without Guide Bush)80mm
Spindle Speed7.000 rpm
Spindle Motor Power7.5 kW
Axis Advances35.000 mm/min
Live Set
Set Quantity2 pcs ER16 STD + 2 pcs ER16 OPS
Cartridge Type 5 Block (ER16)4 pcs ER16
Maximum Drilling Capacity (ER16)10mm
Maximum Tapping Capacity (ER16)M8xP1.25
Live Team Transfer (ER16)6000 rpm
Live Tool Power (Torque)2,5kW
Fixed Sets
Number of Turning Tools5 Pcs (2 pcs 16x16mm)(3 pcs 12x12mm)
Maximum Drilling Capacity13 mm
Maximum Tapping CapacityM12xP1.75
Deep Hole Drilling Capacity170mm
SPINDLE TECHNICAL SPECIFICATIONS
You can check the details of the spindle technical specifications for Van Makine cnc sliding automats for the specified model below.
2. Spindle Specifications
Spindle Speed7.000 rpm
Spindle Motor Power3,7 Kw
Cooling Tank Capacity208lt
Electricity Need15Kva
Machine Dimensions (Length x Width x Height)2.564mmx1.423mmx1.694mm
Machine Weight3.100kg
Fixed Sets
Maximum Drilling Capacity13mm
Maximum Tapping CapacityM10x P1.5
Live Teams
Number of Teams4 pcs V7 ER16 / 8 pcs V8 ER16
Maximum Drilling Capacity6mm
Maximum Tapping CapacityM5xP0.8
Live Team Transfer8.000 rpm
Live Tool Power (Torque)1Nm
