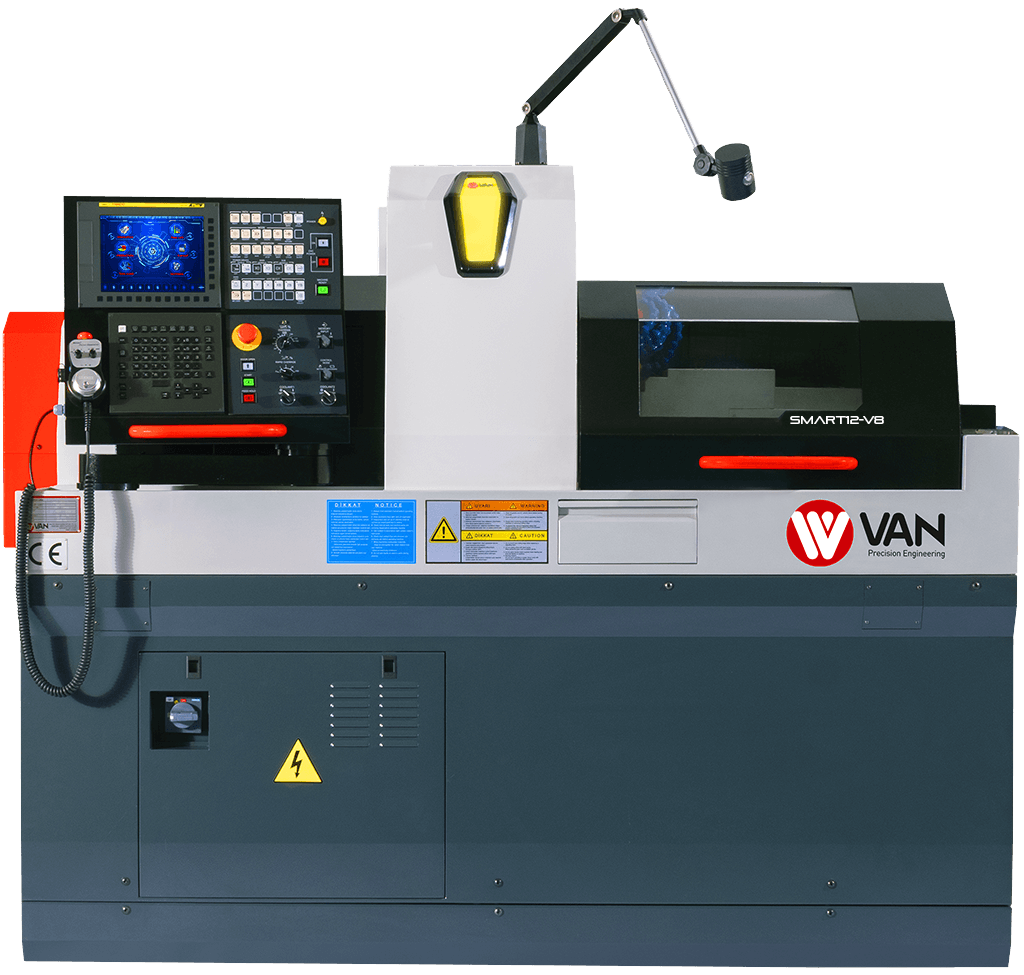

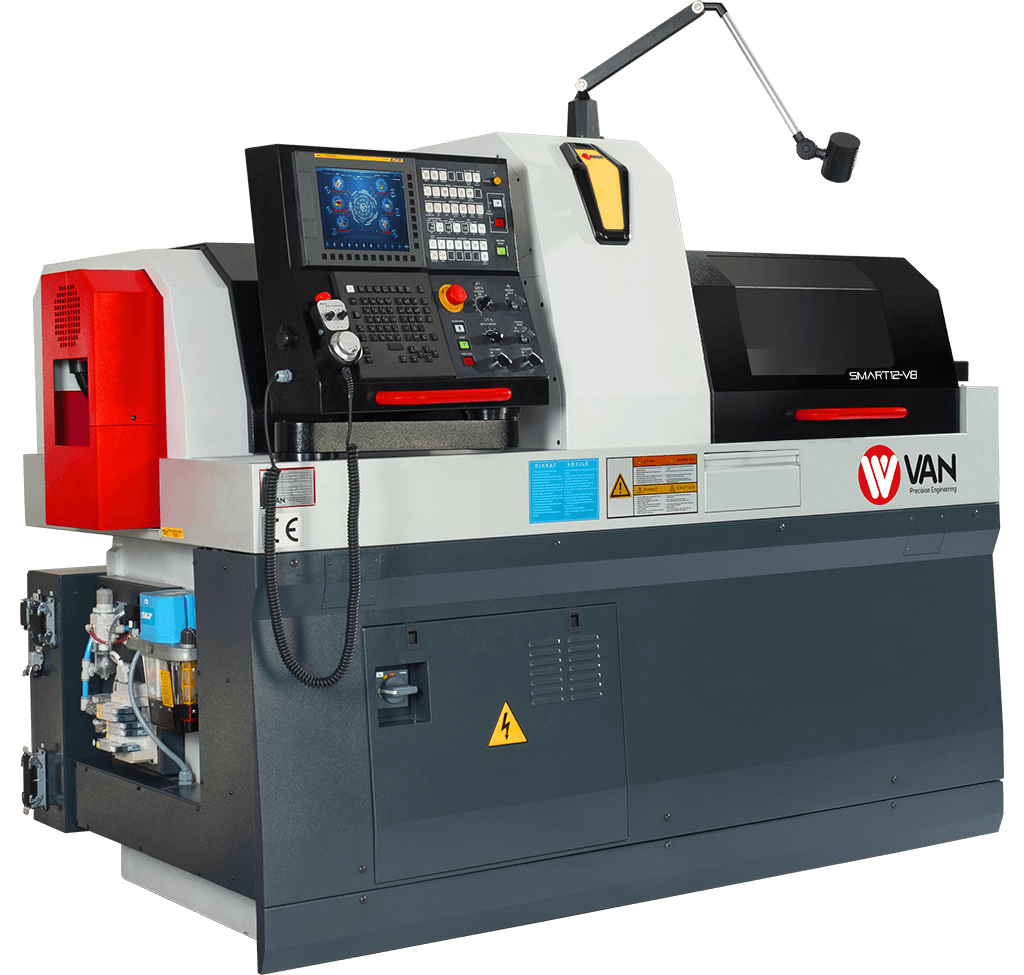

SMART12 V7/V8
WE OFFER YOU PRECİSİON MANUFACTURİNG SOLUTİONS NOT JUST A MACHİNE.
Technicial Specifications
You can check the technical specification details of VAN Machinery Swiss Type Automatic Lathe for the specified model below.
1. Spindle Specifications
Max Machining Diameter12mm
Maximum Machining Length (Guide Bush)205mm
Max Machining Length (Without Guide Bush)Material Diameter x 2.5th (Max.55mm)
Spindle Speed15,000 rpm
Spindle Motor Power3.7 kW
Axis Advances35,000 mm/min.
Fixed Sets
Number of Turning Tools6 pcs (12x12mm)
Maximum Drilling Capacity10mm
Maximum Tapping CapacityM10 P1.5
Deep Hole Drilling Capacity100mm
Live Set
Set Quantity5 pcs. (2 pcs.ER11/3 pcs. ER16)
Cartridge Type 5 Block (ER11)2 Pieces (Std)
Cartridge Type 5 Block (ER16)2 x (ops) + 1 x 4+4 Holder Block Std.
Maximum Drilling Capacity (ER11)5mm
Maximum Drilling Capacity (ER16)7mm
Maximum Tapping Capacity (ER11)M5 Px0.8
Maximum Tapping Capacity (ER16)M6 Px1.0
Live Team Transfer (ER11)10,000 rpm
Live Team Transfer (ER16)6,000 rpm
Live Tool Power (Torque)2Nm
SPINDLE TECHNICAL SPECIFICATIONS
You can check the details of the spindle technical specifications for Van Makine cnc sliding automats for the specified model below.
2. Spindle Specifications
Spindle Speed8,000 rpm
Spindle Motor Power2.2Kw
Cooling Tank Capacity160lt
Electricity Need4,5Kva
Machine Dimensions (Length x Width x Height)2.070mmx1.070mmx1.760mm
Machine Weight2.900kg
Fixed Sets
Maximum Drilling Capacity4 x V7/ 8 x V8 (7 block ops)
Maximum Tapping Capacity8mm
Live Teams
Number of Teams4 x V7/ 8 x V8 (7 block ops)
Maximum Drilling Capacity6mm
Maximum Tapping CapacityM5xP0.8
Live Team Transfer8,000 rpm
Live Tool Power (Torque)1Nm
