Product Details

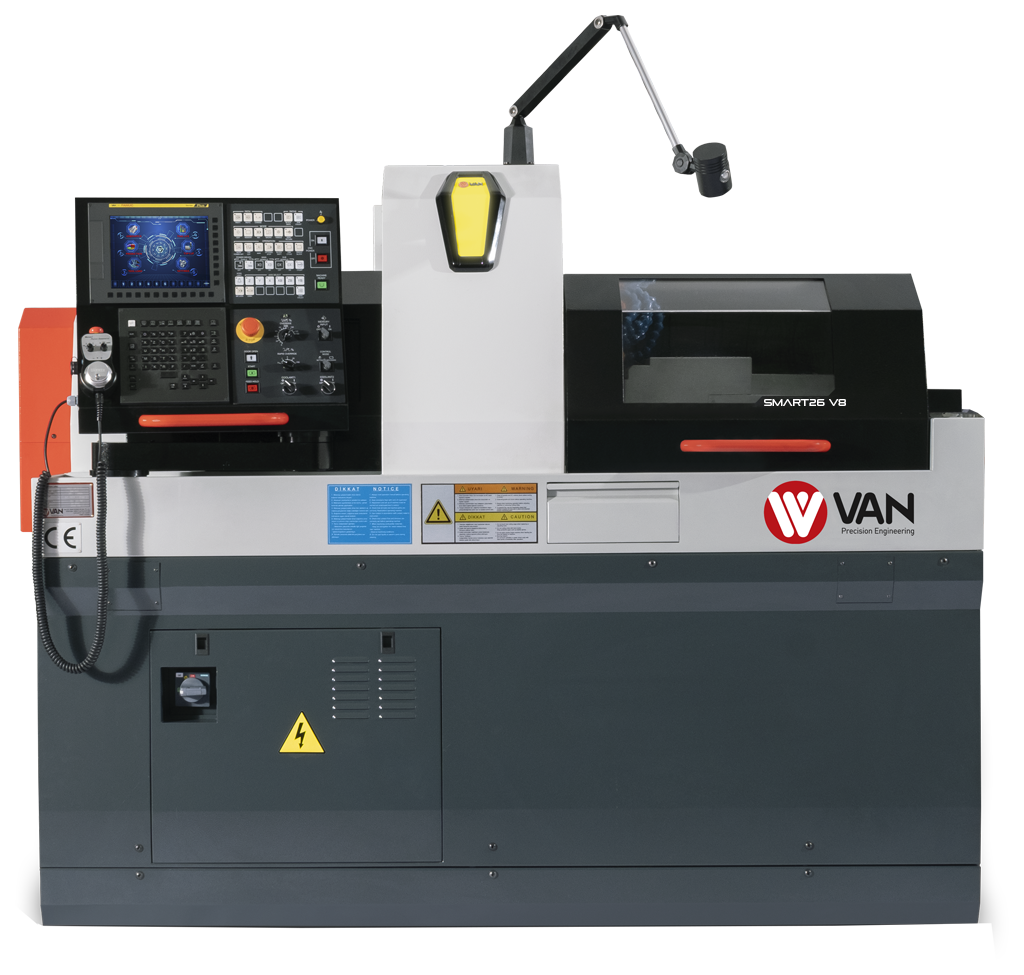

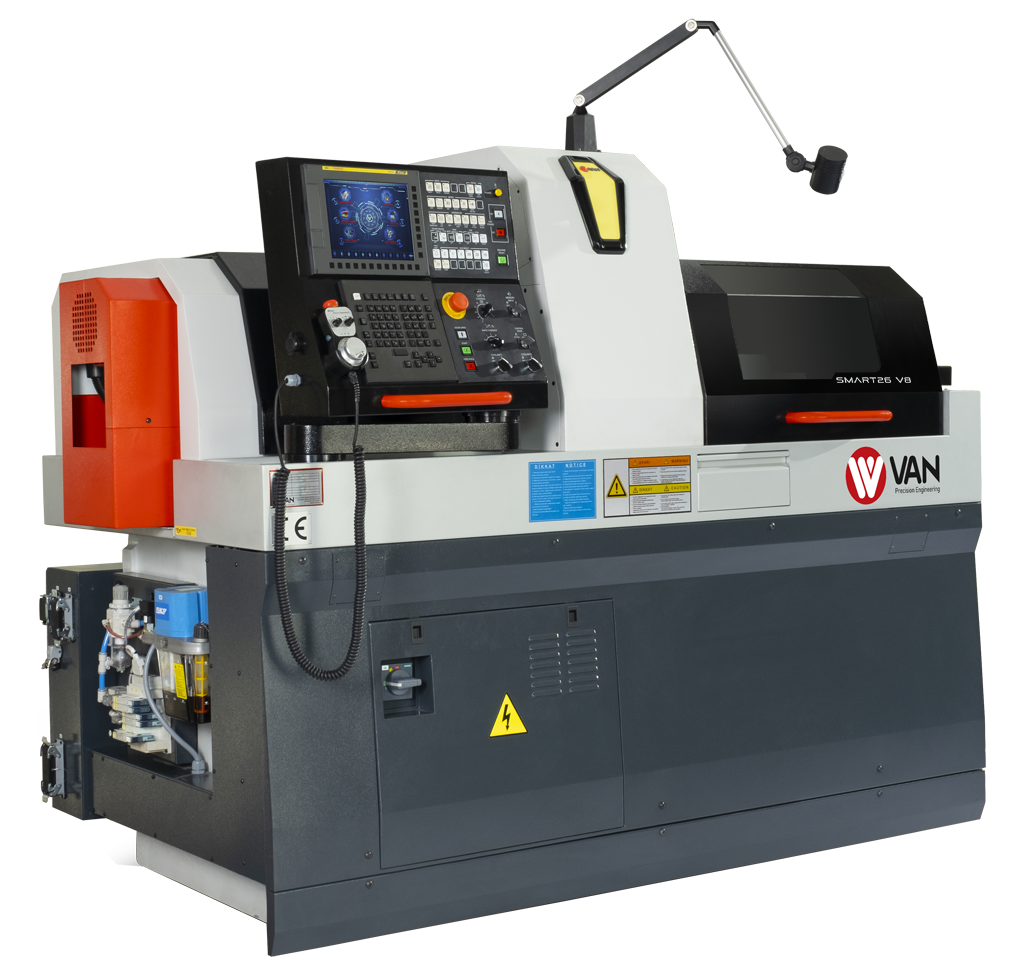

SMART26 V7/V8
WE OFFER YOU PRECİSİON MANUFACTURİNG SOLUTİONS NOT JUST A MACHİNE.
Technicial Specifications
You can check the technical specification details of VAN Machinery Swiss Type Automatic Lathe for the specified model below.
1. Spindle Specifications
Max Machining Diameter26mm
Maximum Machining Length (Guide Bush)205mm
Max Machining Length (Without Guide Bush)60mm
Spindle Speed8.000 rpm
Spindle Motor Power5.5 kW
Axis Advances35.000 mm/min
Live Set
Set Quantity2 pcs ER16 STD + 2 pcs ER16 OPS
Cartridge Type 5 Block (ER16)4 pcs (Std)
Maximum Drilling Capacity (ER16)7mm
Maximum Tapping Capacity (ER16)M6 Px1.0
Live Team Transfer (ER16)6.000 rpm
Live Tool Power (Torque)1,4kW
Fixed Sets
Number of Turning Tools5 ADET (2 pcs 16x16mm)(3 pcs 12x12)
Maximum Drilling Capacity10mm
Maximum Tapping CapacityM8xP1.25
Deep Hole Drilling Capacity170mm
SPINDLE TECHNICAL SPECIFICATIONS
You can check the details of the spindle technical specifications for Van Makine cnc sliding automats for the specified model below.
2. Spindle Specifications
Spindle Speed8.000 rpm
Spindle Motor Power2.2Kw
Cooling Tank Capacity160lt
Electricity Need13,2Kva
Machine Dimensions (Length x Width x Height)2.070mmx1.070mmx1.760mm
Machine Weight3.050kg
Live Teams
Number of Teams4 pcs V7 / 8 pcs V8
Maximum Drilling Capacity6mm
Maximum Tapping CapacityM5xP0.8
Live Team Transfer8.000 rpm
Live Tool Power (Torque)1Nm
Fixed Sets
Maximum Drilling Capacity10mm
Maximum Tapping CapacityM8xP1.25
